Gasoline Power Chain Saws 24 inch Guide Bar 2 Cycle 65/72cc Gas Chainsaw Farm Garden Cutting Wood Crankcase Hand Pull Start

Description

Using traditional axes to cut wood is inefficient and very tiring. And our 2-stroke gasoline-powered chainsaw is an ideal choice for you to cut wood with less effort, and it is easy to assemble&operate.Having it makes your work easier and simpler.

Specification

Material: Manganese Steel, Rubber
Power Type: Gasoline
Color: Orange
Process: Quenching
Assembly Required: Yes
Power Source: Gas Powered
Ignition System: Hand Pull Start
Engine Type: Single Cylinder, Air-cooled, 2-Stroke
Oil Mixture: 25:1(Gasoline: Oil)
Chain Length: 60.96cm/24inch
Displacement: 65cc/72cc
Tank Capacity: 0.77l/26oz
Speed: 2700rpm
Chain Fuel Tank Capacity: 0.42l/14oz
Power: 3.4kw/3.9kw
Maximum Cutting Diameter: 58cm/28.33in
Net Weight: 8.5kg/18.74 1bs
Gross Weight: 9kg/19.841bs
Package Size: 56*26*38cm/22.05*10.24*14.96in
Product Size: 104*27*33cm/40.94*10.62*12.99in

Package Included
1x Gas Chainsaw
1 Pair X Goggles
1 Pair X Gloves
1x Funnel
1x Guide bar
1x Guide bar Cover
1x Chain
1x Mixing Pot
1x English Manual
All Accessories for Assembly

Application

It is suitable for forest harvesting, cutting wood, pruning branches, gardening, home woodworking, bamboo sawing, logging, light felling, DIY crafts, ranches, farms, and so on to meet different needs

Starting Method:

1. Fill fuel and chain oil tanks respectively,and tighten the caps securely.
2. Put the switch to «I» position
3. While holding the throttle lever together with the throttle interlock, push in the side throttle lock button and release the throttle lever to hold it at the starting position.
4. Pull out the choke knob to the closed position.
5. While holding the saw unit securely on the ground,pull the starter rope vigorously.
6. When engine has ignited first ,push in the choke knob and pull the starter again to start the engine
7. Allow the engine to warm up with the throttle lever pulled slightly.

How to Assemble the Chainsaw:

1.Pull the guard towards the front handle to check that the chain brake is not on.
2. Loosen the nuts and remove the chain cover.
3.Install the attached spike to the power unit.
4.Gear the chain to the sprocket and, while fitting the saw chain around the guide bar, mount the guide bar to the power unit. Adjust the position of chain tensioner nut on the chain cover to the lower hole of guide bar.

Notes:

1.Please mix gasoline with oil at the ratio of 25:1. The oil mixing ratio should not be incorrect or biased. The chain oil tank must not be short of oil. Do not use inferior engine oil as a matching oil or chain lubricant.
2.Please perform necessary maintenance, dust cleaning, oil injection, etc. after each work.
3.Before using the chain saw, apply engine oil to the air filter to ensure the normal use of the machine.
4.Please read the English manual completely before installing. And pay particular attention to the safety instructions included.
5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.

Key Features

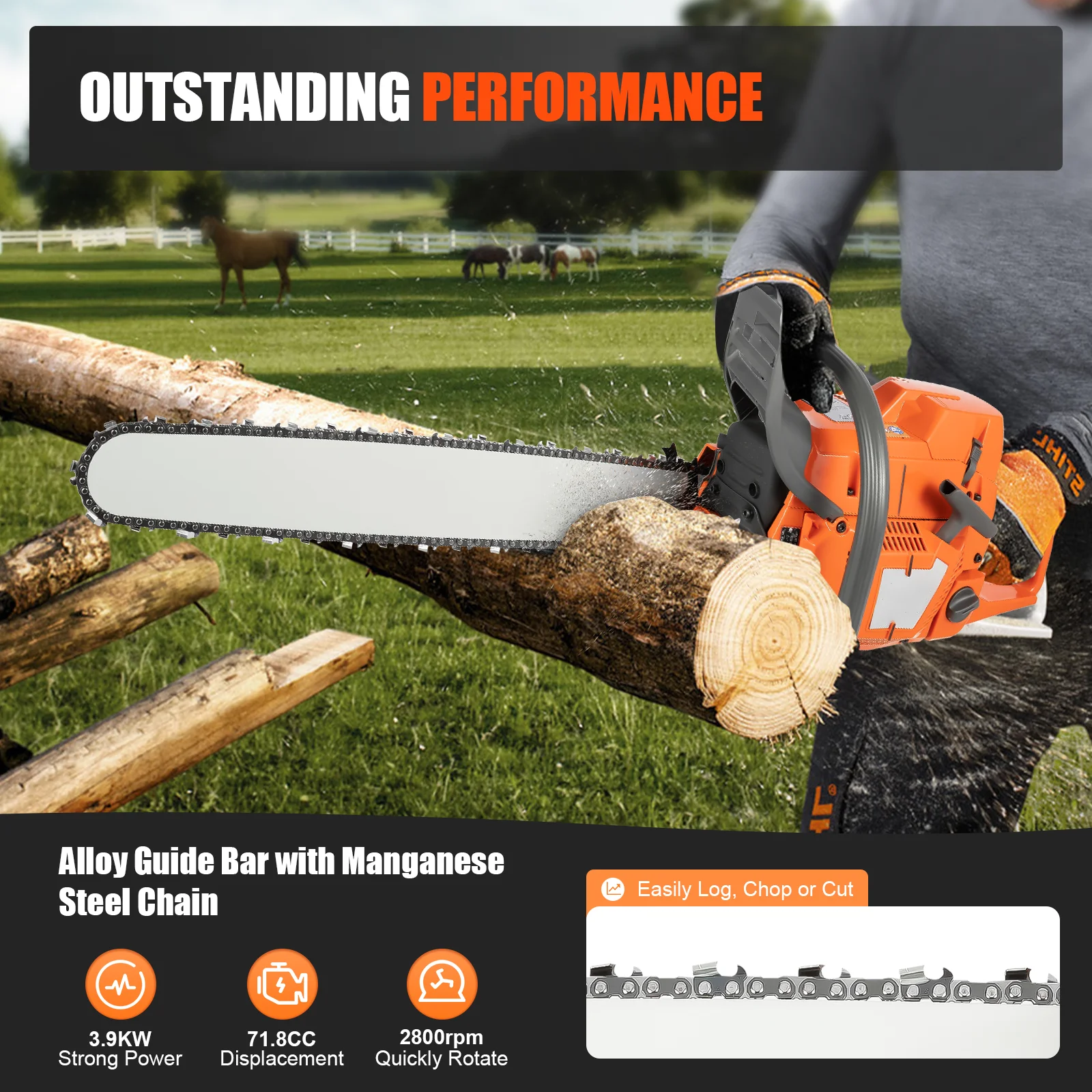

Strong and Durable: The Manganese Steel guide bar and chain, along with the quenching treatment, are high-strength, durable, wear-resistant, and not easy to deform.

High efficiency: The 2-stoke engine with 65cc/72cc displacement, #rpm high speed, and 3.4KW/3.9KW high power, the 24″ guide chain, and the carburetor with the function of atomizing fuel help this machine keep normal and economical operation, reduce emissions, achieve fast cutting, thus providing excellent performance(about 28.33″ cutting diameter).

Easy to Start: You can easily and quickly start this machine by pulling the drawstring 2-3 times, greatly saving you time and effort.

Multiple Functions: The centrifugal air purification system removes large dust and debris particles before reaching the air filter. The quick-release air filter can facilitate cleaning and air replacement. The adjustable oil pump allows you to control the oil flow rate based on application and weather conditions.

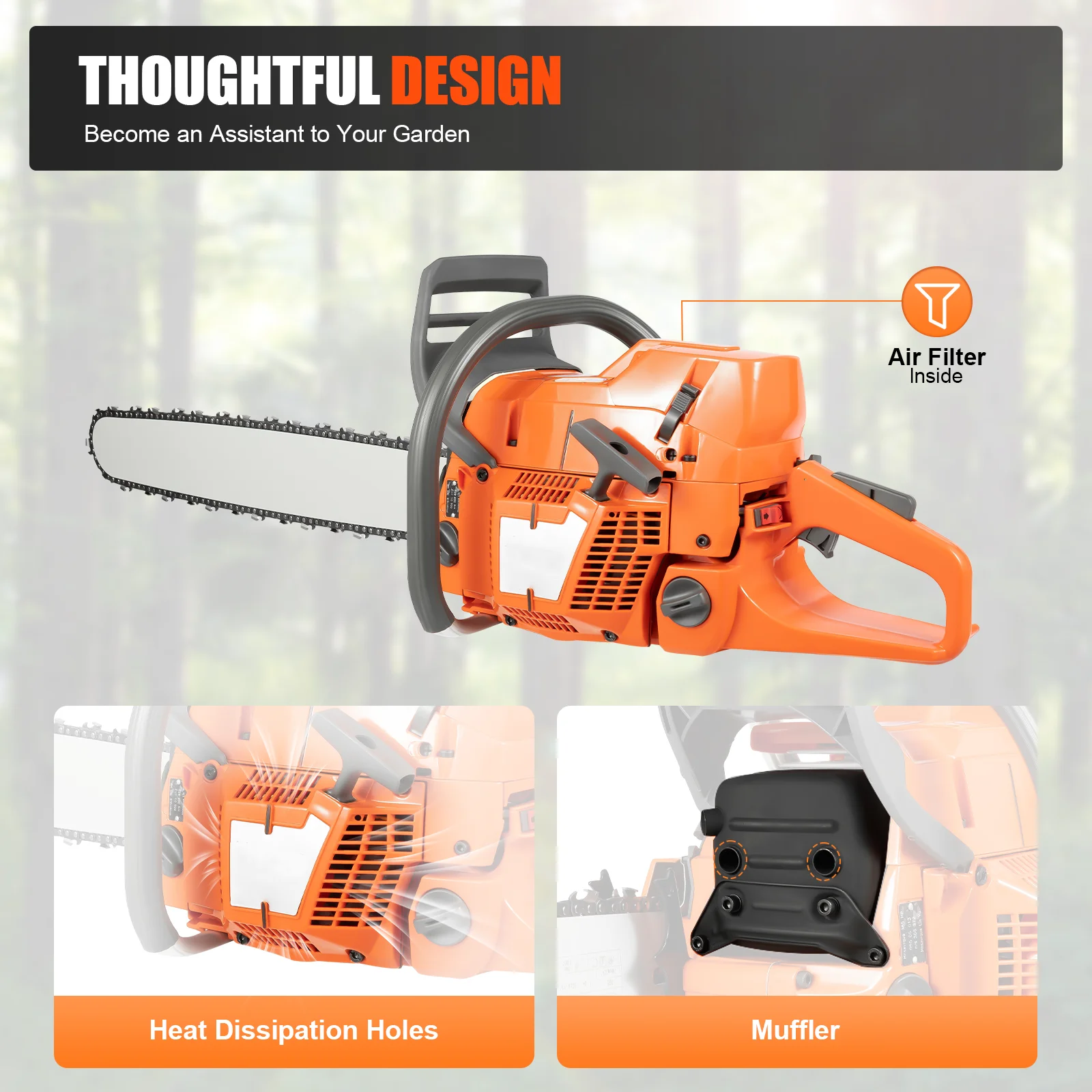

Good Heat Dissipation: The heat-sink holes on the machine ensure a good heat dissipation effect, which can effectively avoid excessive body temperature and internal oil temperature, thereby extending the service life of the machine.

Ergonomic Handles: The ergonomic handles on the machine head and top have textured skin, give you a comfortable grip without slipping, absorb shock, and reduce hand fatigue even in long-time use for better balance&high-cutting performance.

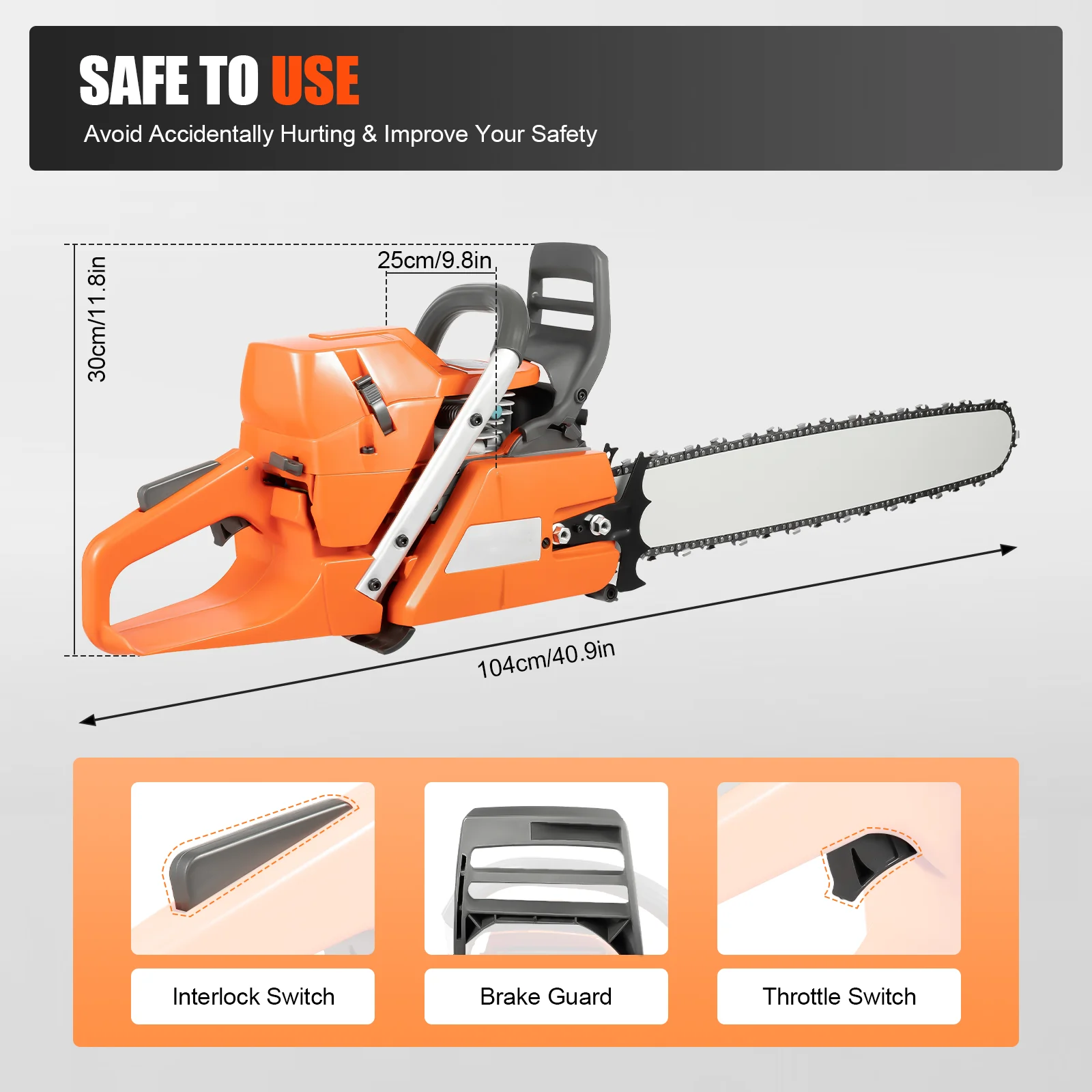

High Safety: When starting the machine, first turn on the flameout switch, and when using it, both the throttle valve and the safety lock must be pressed simultaneously. The widened brake baffle can be used for emergency braking, protecting your hands from injury, preventing wood chips from splashing, and improving safety.

Low Vibration&Noise: The silencing and damping designs can effectively reduce noise and vibration, providing you with a comfortable environment when cutting.

Buy with Confidence: We have been working hard to provide better service and quality for our customers, which is our goal. If there is any problem with our products, please contact us in time.

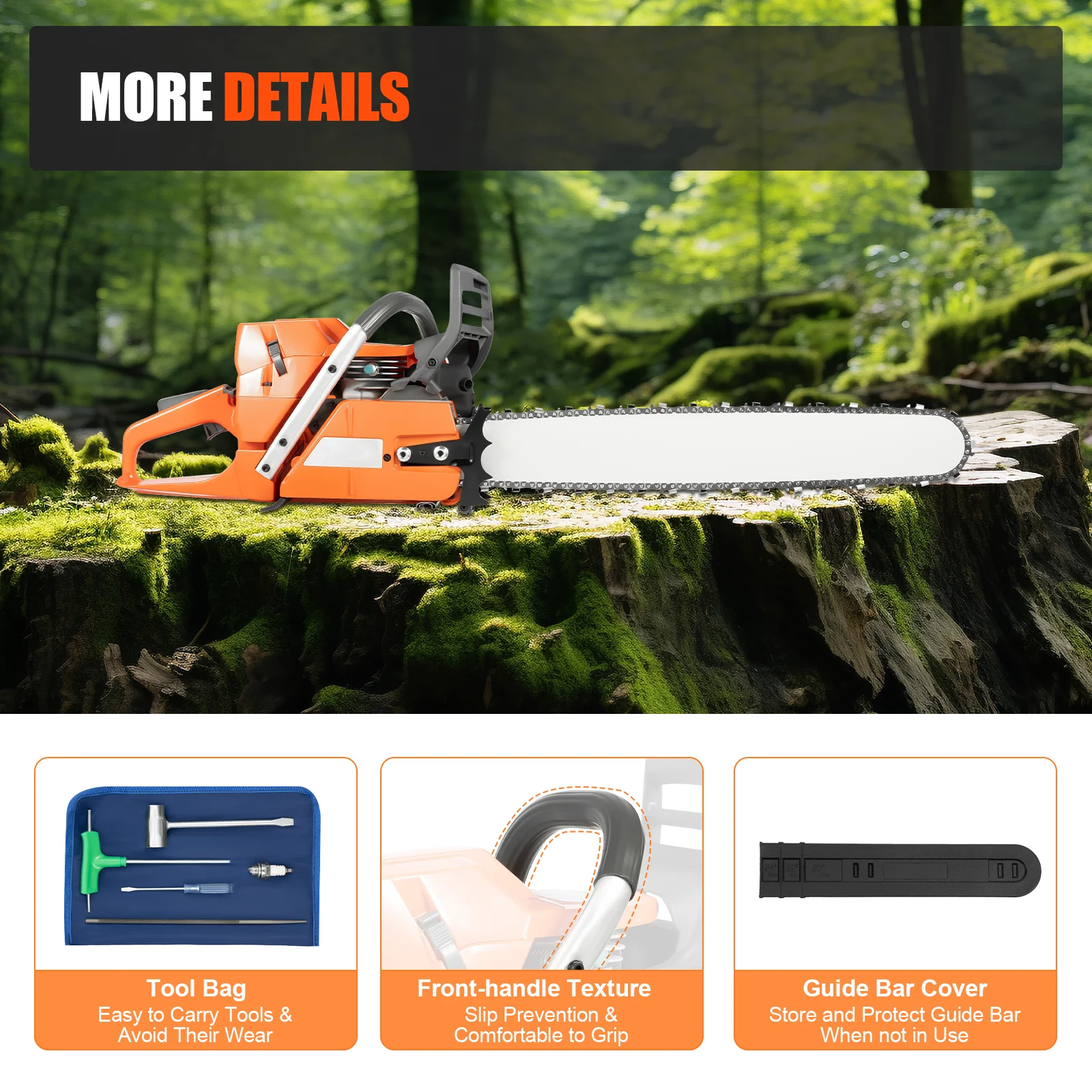

Details
Guide Bar Cover: It allows for convenient storage of the guide bar when not in use and protects it well.

Tool Bag: You can put the equipped tools into the tool bag to avoid losing them while protecting the tools well to extend their service life.

Fuel Tanks: The 26oz fuel tank, 14oz chain fuel tank, and equipped translucent mixing pot allow for large capacity, a convenient mixture of fuels, and long-term use without frequent filling.

Convenient Tensioner: It ensures accurate and convenient adjustment of the chain tension.
