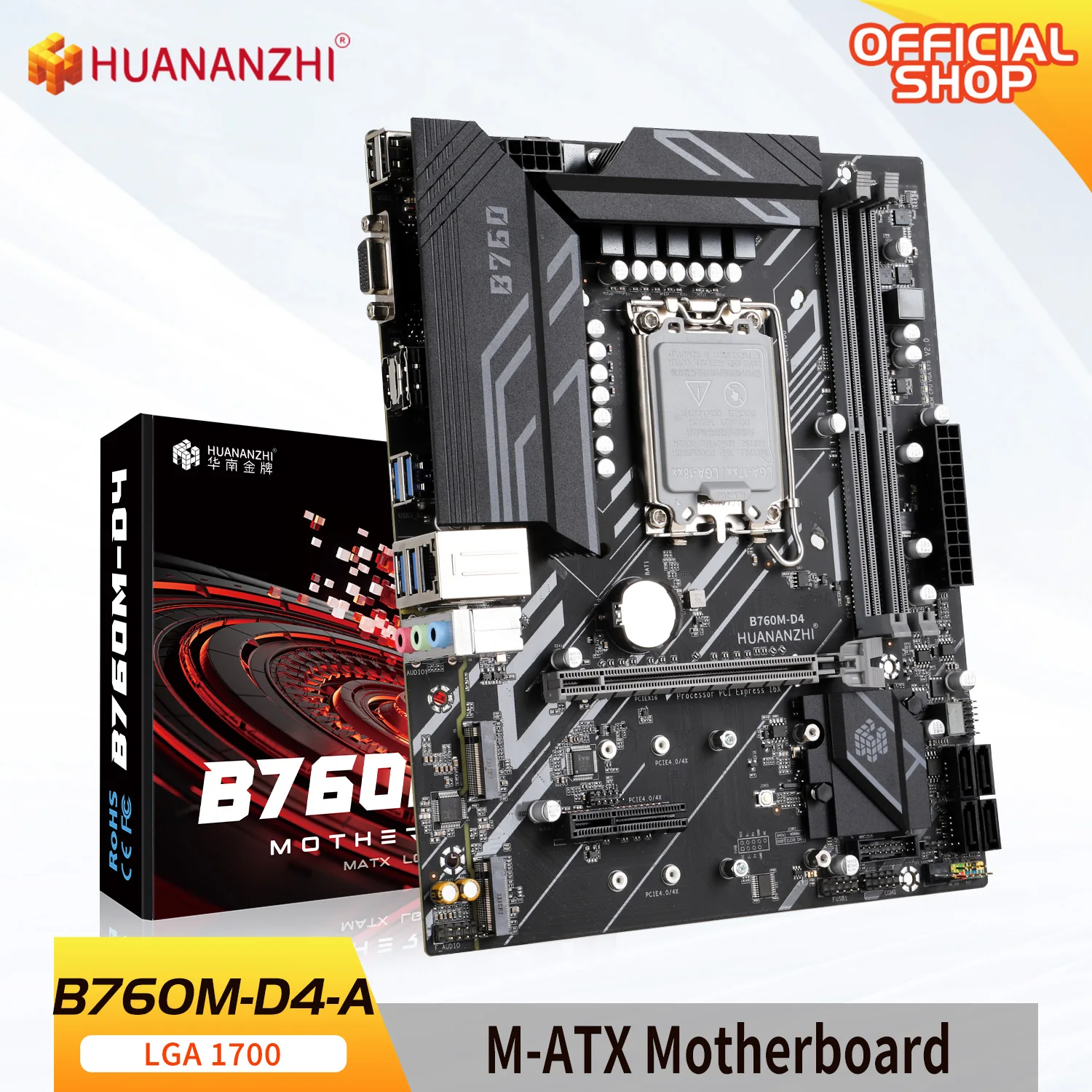

Model：HUANANZHI B760M-D4 Motherboard
CPU Socket：Supports Intel 12 processors LGA 1700 Processors
Ｍemory Socket：2*DDR4 memory socket，Maximum Memory Capacity 64G
Ｍemory Standard：Support Dual channel DDR4 3200/2666/2400/2133MHz（Support XMP overclocking / depending on CPU）
SATA Inderface：4 *SATA3.0 6Gbps interface
Extended Inderface：2 * M.2 22110 NVME PCIE X4 4.0；2*USB3.2 Gen2 10Gb/s interfaces, 3*USB3.2 GEN1 5Gb/s interfaces, 3*USB2.0 480Mbps interfaces, 1 VGA interface, 1 HDMI2.1 interface, 1 DP1.4 interface, 1*1 network interface, 1*3-hole audio port
Expansion Slots：1 PCI Expressx16 4.0 slot, 1 PCI Expressx4 4.0 slot
Soud Track：Realtek High Definition Audio
Network interface：Gigabit Ethernet
Power interface：24pin+8pin
Fan interface：1 *CPU_FAN + 2* SYS_FAN
PCB layer：6 layer PCB，10Phases power supply
Dimension：235*195MM M-ATX

Note: 1.The motherboard does not have integrated graphics, the cpu needs to support Core Graphics card, and the video output interface can be used.

2.Without cooler Holder Base

Note:

1.Please allow 1-3mm differs due to manual measurement.
2.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
3.The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
4.For Customs duties problem , pls make sure you can solve the customs clearance problems by yourself, if you can’t solve it, we don’t advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding！
5.Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard.You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation.Mind please don’t buy!
