- High-concerned chemical: None
- RAID Supported: No
- Processor compatibility: Intel Xeon Scalable,Intel Core
- Ports: M.2
- Usage Scenario: Audio & Video,Office,others
- Onboard Connectors & Header: CPU Fan Connector(s),AAFP Connector
- Back I/O Ports: 1x RJ45
- Support USB Type: USB 2.0
- Onboard LAN: 1x RJ45
- Audio Channels: 2.1
- SATA RAID: 0
- Supports M.2 SSD: 2280
- Number of M.2: 1
- Storage Interface Type: SATA
- Number of PCI: 0
- Number of PCIe x 1: 1
- Number of PCIe x 4: 0
- Number of PCIe x 8: 1
- Number of PCIe x 16: 1
- PCI – E standards: PCI-E 2.0
- Number Of Memory Slots: 2
- Support Memory Type: DDR3
- Quality Certification: ce,ROHS
- Memory channel: Double
- Package: Yes
- Maximum Ram Capacity: 16 GB
- Chipset Manufacturer: Intel
- Battery Included: No
- With CPU: No
- Chipset: Intel H61
- Application: Desktop
- Socket Type: LGA 1155
- Brand Name: MACHINIST
- Special Features: None
- Origin: Mainland China
- Certification: RoHS,CE
>> The package contains:

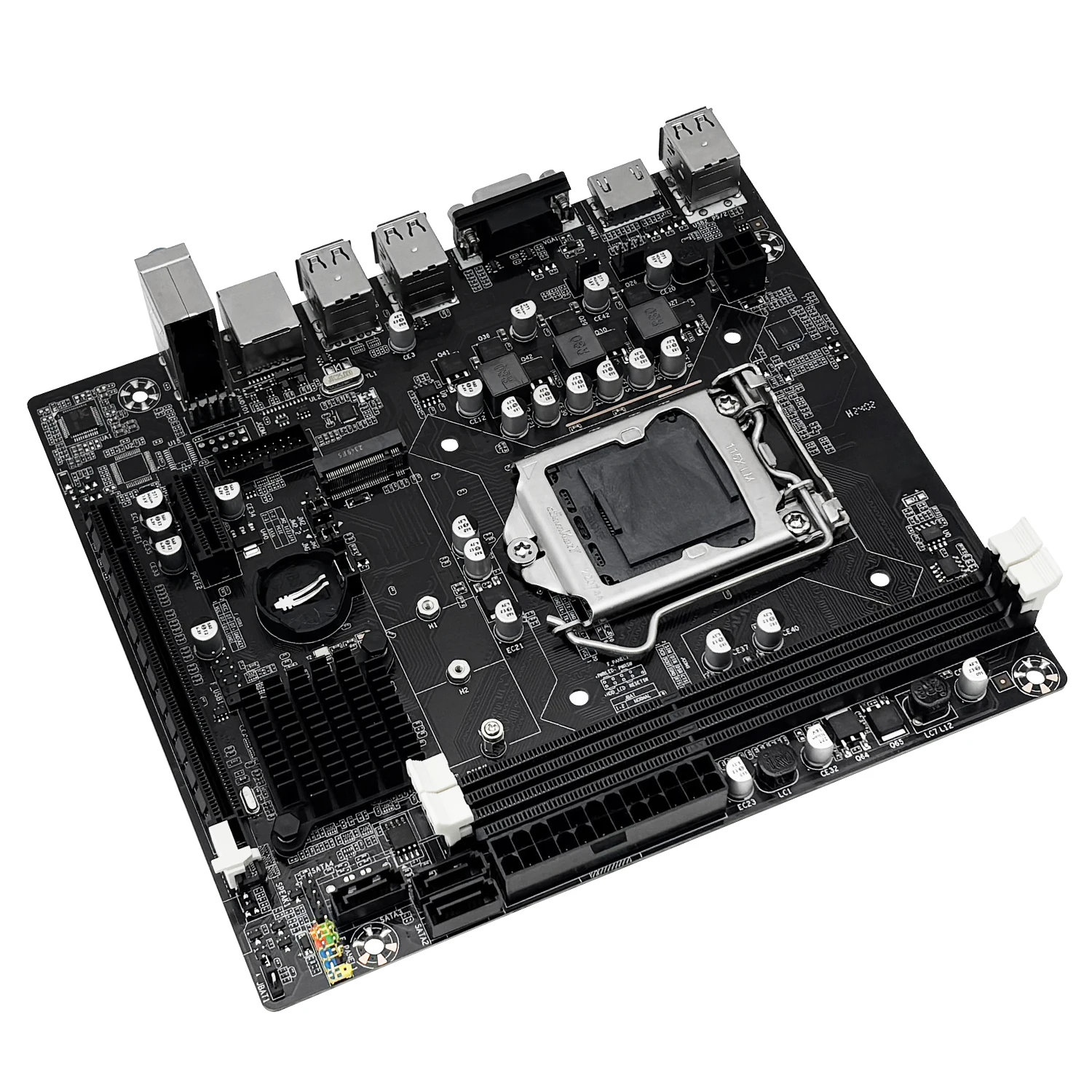

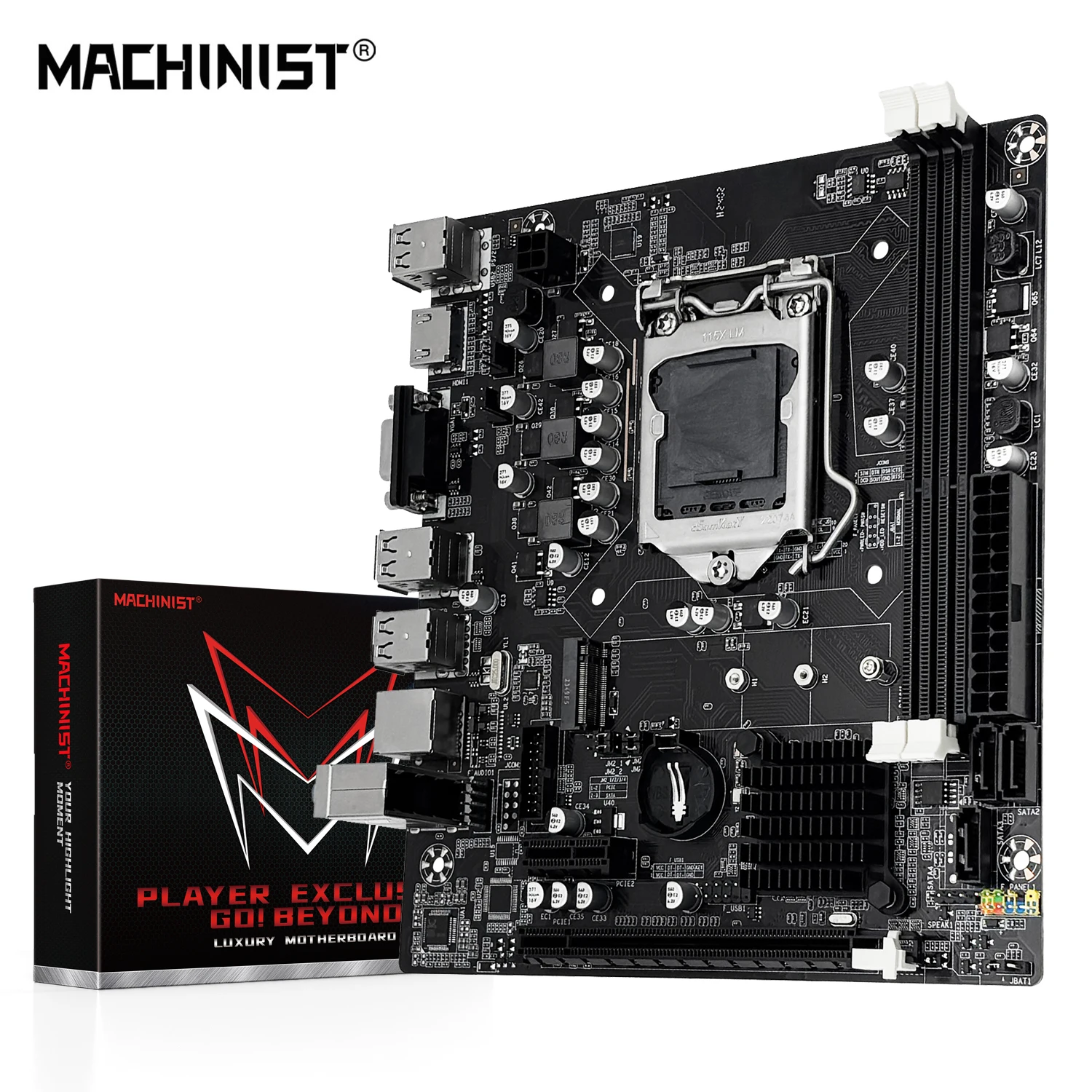

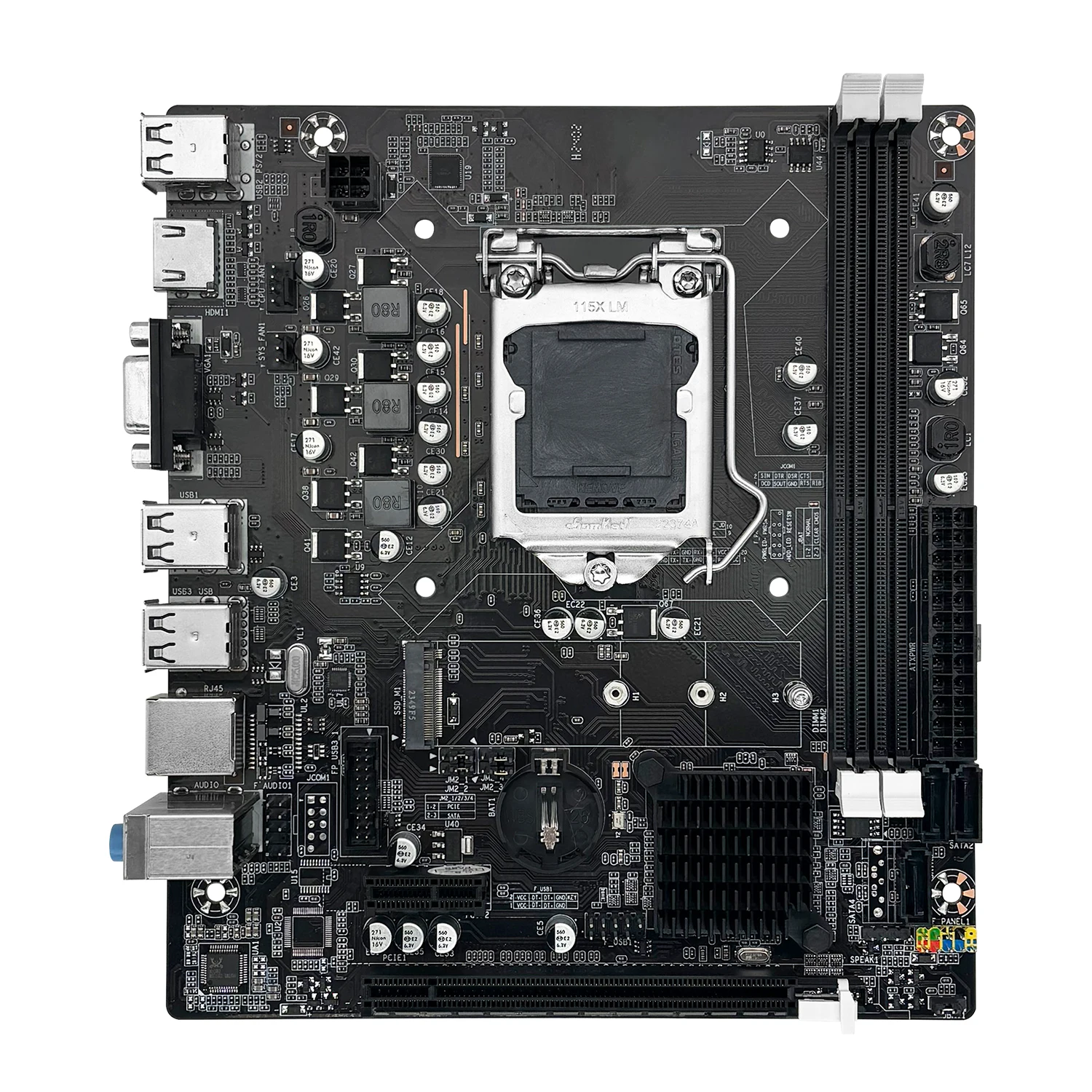

# Main product: 1 piece of MACHINIST H61C motherboard;

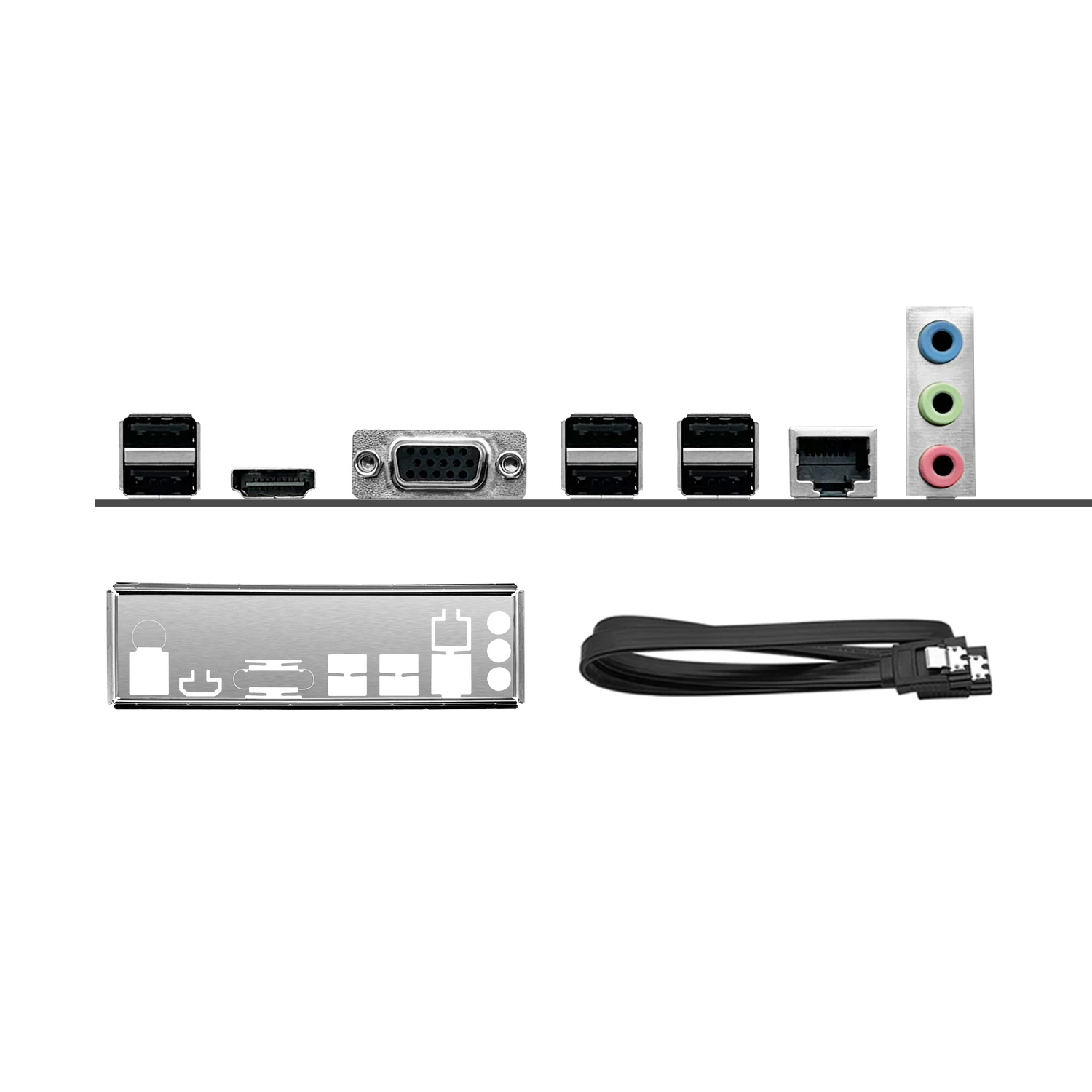

Gift accessories: I/O shield, SATA cable.
All gifts are manually tested before sending and then packaged. Please understand if any gifts are missing!
>> Motherboard information:
Brand: MACHINIST.
Motherboard model: H61C.
Processor: Supports Intel LGA 1155-pin series processors.
Chipset: H61 chipset.
>> Memory:
Technology: Dual-channel DDR3. Supports 1333/1600/1866 MHZ.
Maximum capacity: 32GB (16G x 2).
Memory slot: DDR3.
Supported memory types: Only DDR3 desktop memory is supported.
Please use international brands such as Samsung, Kingston, Sandee, Micron, and Hynix. Other brands may not be compatible.

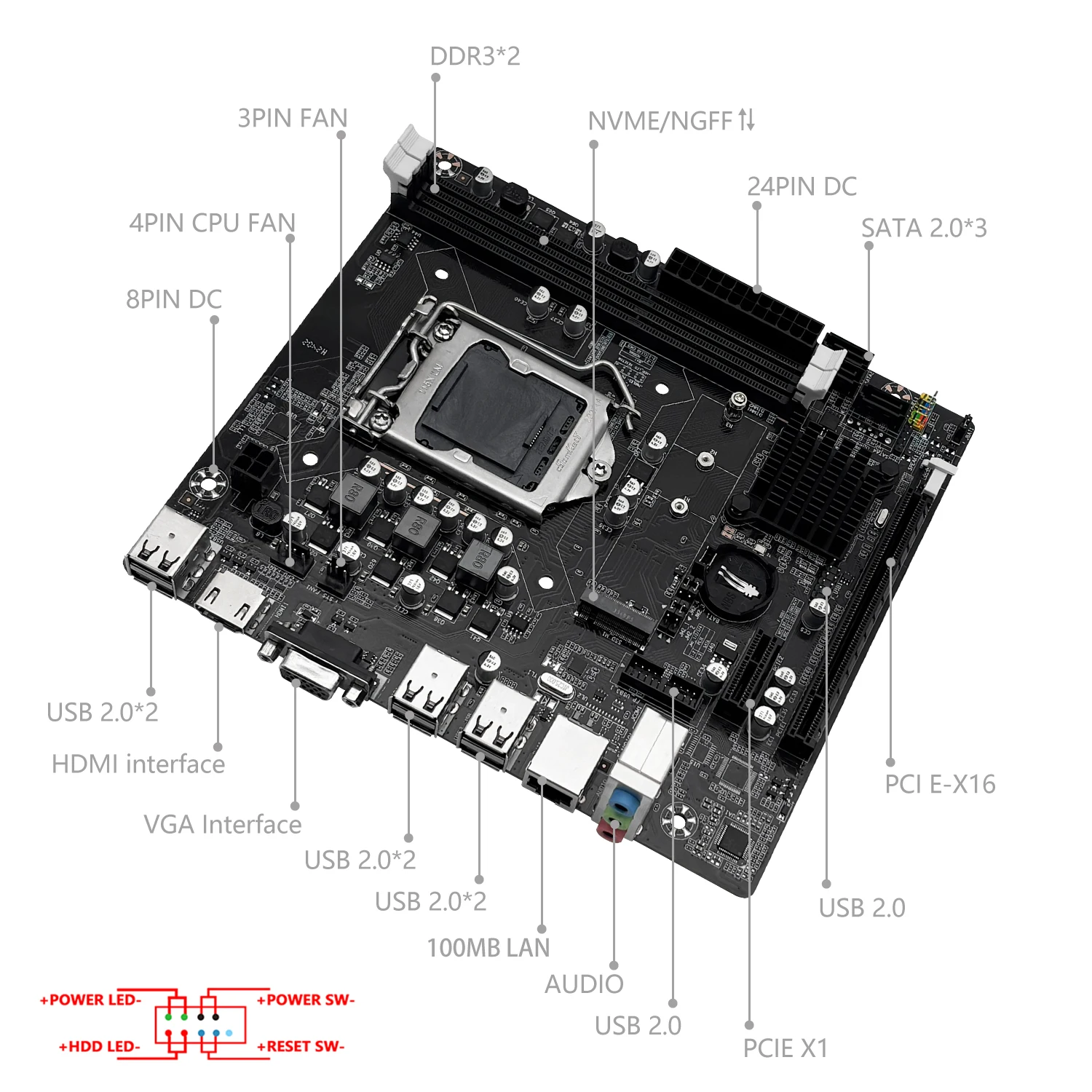

>> Post-i /O:
Display interface: Supports VGA & HDMI display.
USB interface: 6 USB 2.0 ports; .
Ethernet: 100M network adapter port.
Audio: 1 (microphone input, line output, line input).
>> Internal connector:
SATA interface: 3 (SATA2.0).
M.2:1 (NVME/SATA, default sata interface).
PCIe: 1 X16 PCIe and 1 X1 PCIe.
>> Overall dimensions:

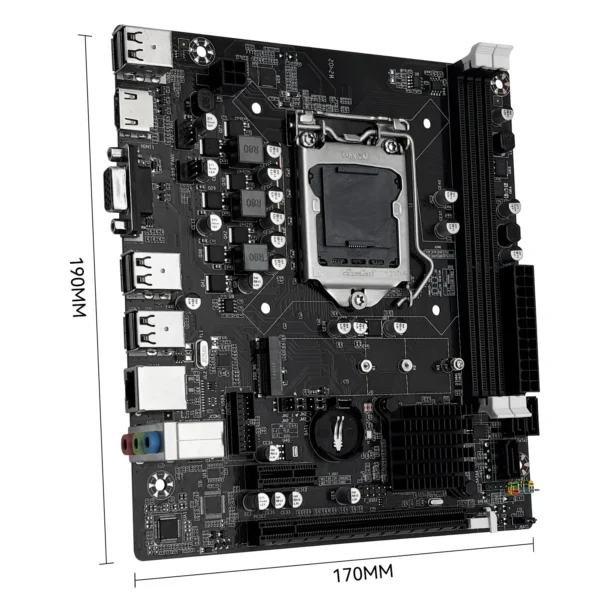

Size: 190mm*170mm.
Motherboard weight (including packaging) : approximately 0.7 kilograms.
>> Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.
>> Note:
(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1 to 3mm.
(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.
(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply
(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
