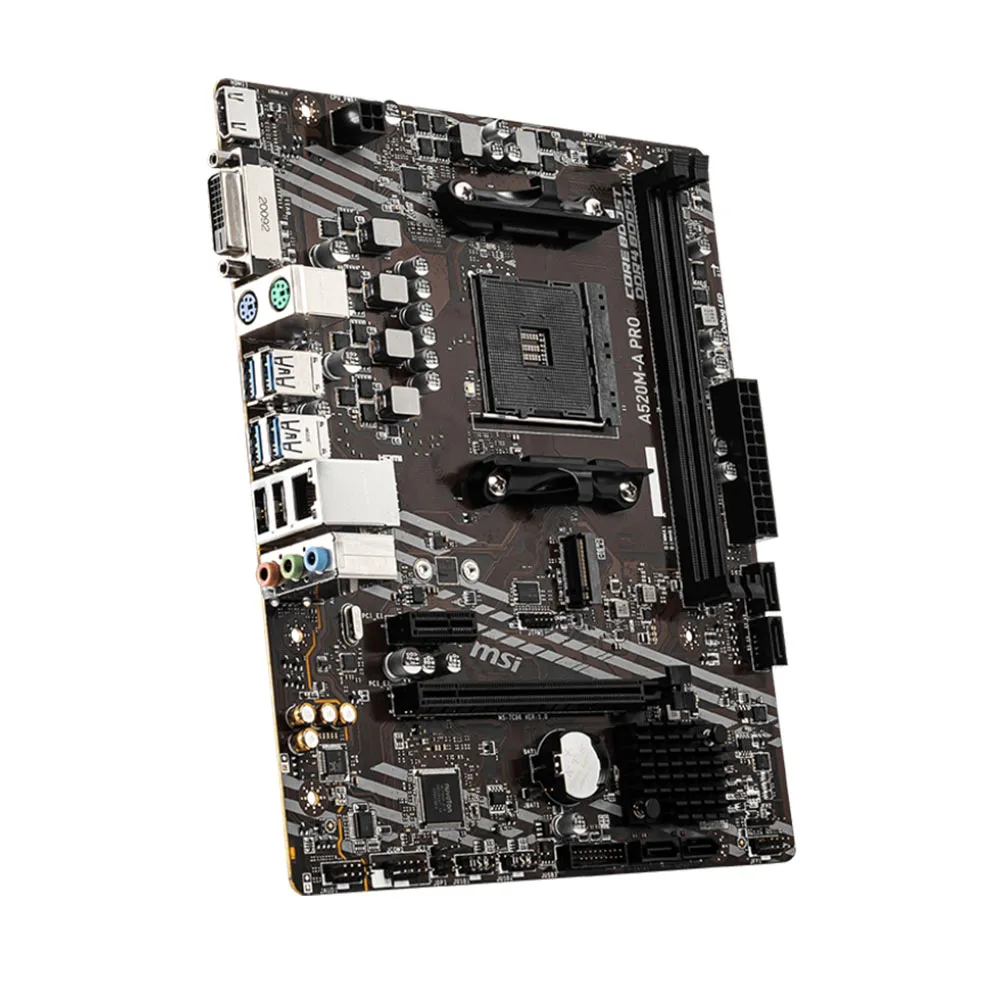

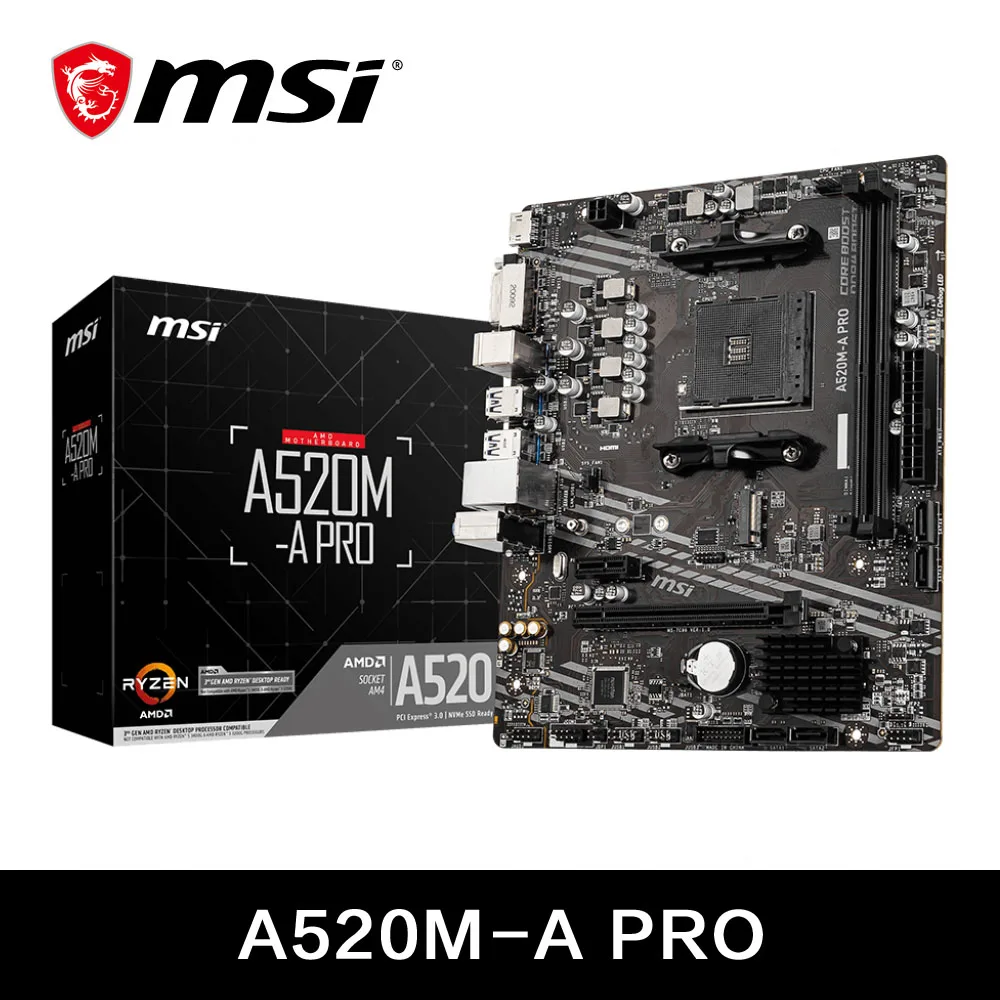

msi amd a520m a pro motherboard support ryzen cpu r3 r5 r7 5000 & 3000 series mainboard am4 m.2 nvme dual channel ddr4 full new
msi amd a520m a pro motherboard support ryzen cpu r3 r5 r7 5000 & 3000 series mainboard am4 m.2 nvme dual channel ddr4 full new
msi amd a520m a pro motherboard support ryzen cpu r3 r5 r7 5000 & 3000 series mainboard am4 m.2 nvme dual channel ddr4 full new
msi amd a520m a pro motherboard support ryzen cpu r3 r5 r7 5000 & 3000 series mainboard am4 m.2 nvme dual channel ddr4 full new
msi amd a520m a pro motherboard support ryzen cpu r3 r5 r7 5000 & 3000 series mainboard am4 m.2 nvme dual channel ddr4 full new
msi amd a520m a pro motherboard support ryzen cpu r3 r5 r7 5000 & 3000 series mainboard am4 m.2 nvme dual channel ddr4 full new
Conectores

$114.95 & Free Shipping

GUARANTEED SAFE CHECKOUT
  • Tarjeta Visa
  • MasterCard
  • American Express
  • PayPal
  • Apple Pay
  • Tarjeta Visa

Descripción



  • High-concerned chemical: None
  • RAID Supported: Yes
  • Processor compatibility: AMD Ryzen 5000 Series-R5,AMD Ryzen 3000 Series-R7,AMD Ryzen 5000 Series-R7,AMD Ryzen 3000 Series-R3,AMD Ryzen 3000 Series-R5,AMD Ryzen 5000 Series-R3
  • Usage Scenario: Gaming,Audio & Video,Household,Office,Design,Video Production

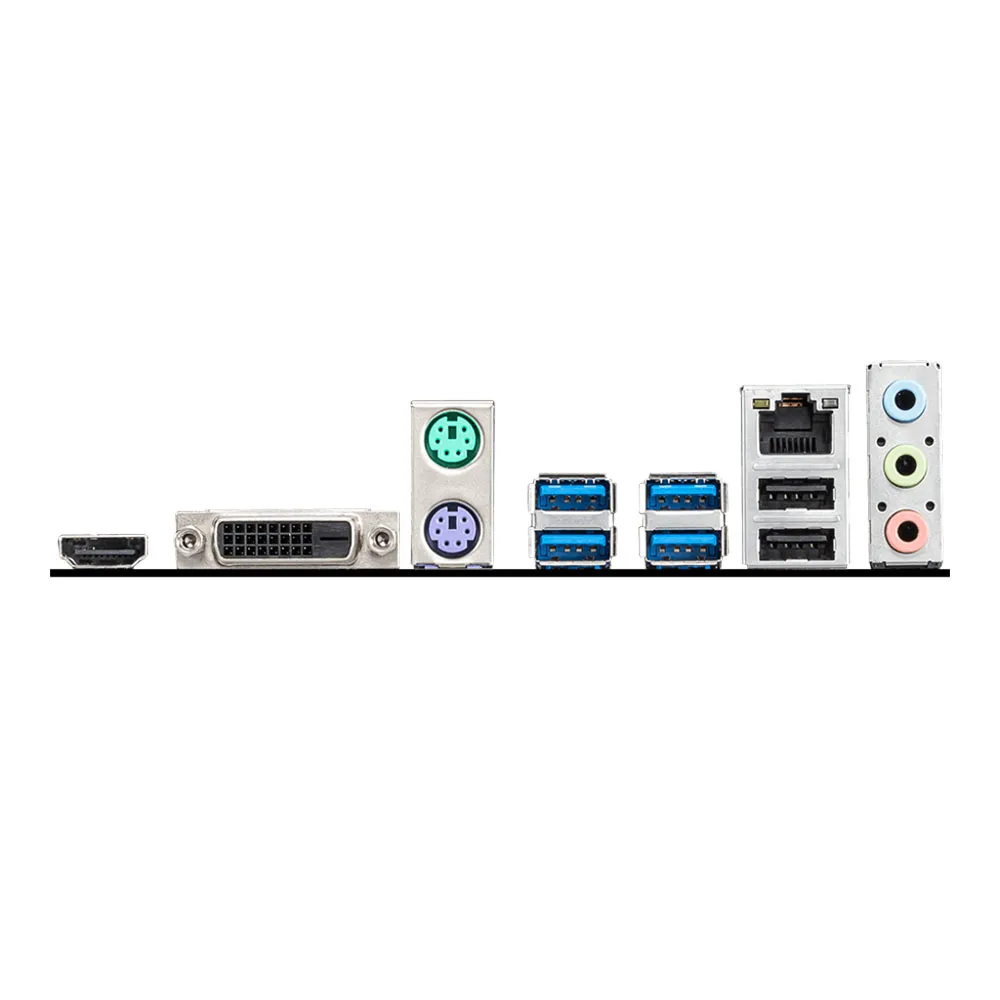

  • Back I/O Ports: 1x RJ45,DVI-D,HDMI 2.1
  • Support USB Type: USB 2.0,USB 3.2 Gen1
  • Onboard LAN: 1x RJ45
  • Audio Channels: 7.1
  • SATA RAID: 0,1,10
  • Supports M.2 SSD: 2242,2280,2260
  • Number of M.2: 1
  • Number of SATA Ports: 4
  • Storage Interface Type: SATA,M.2 (NVMe)
  • Number of PCI: 1
  • Number of PCIe x 16: 1
  • PCI – E standards: PCI-E 3.0
  • Support Memory Type: DDR4
  • Memory channel: Double
  • Package: Yes
  • Maximum Ram Capacity: 64 GB
  • Form Factor: Micro-ATX
  • Chipset Manufacturer: AMD
  • Battery Included: No
  • With CPU: No
  • Chipset: AMD A520
  • Application: Desktop
  • Socket Type: AM4
  • Brand Name: MSI
  • MSI Model: A520M A PRO
  • Special Features: None
  • Origin: Mainland China

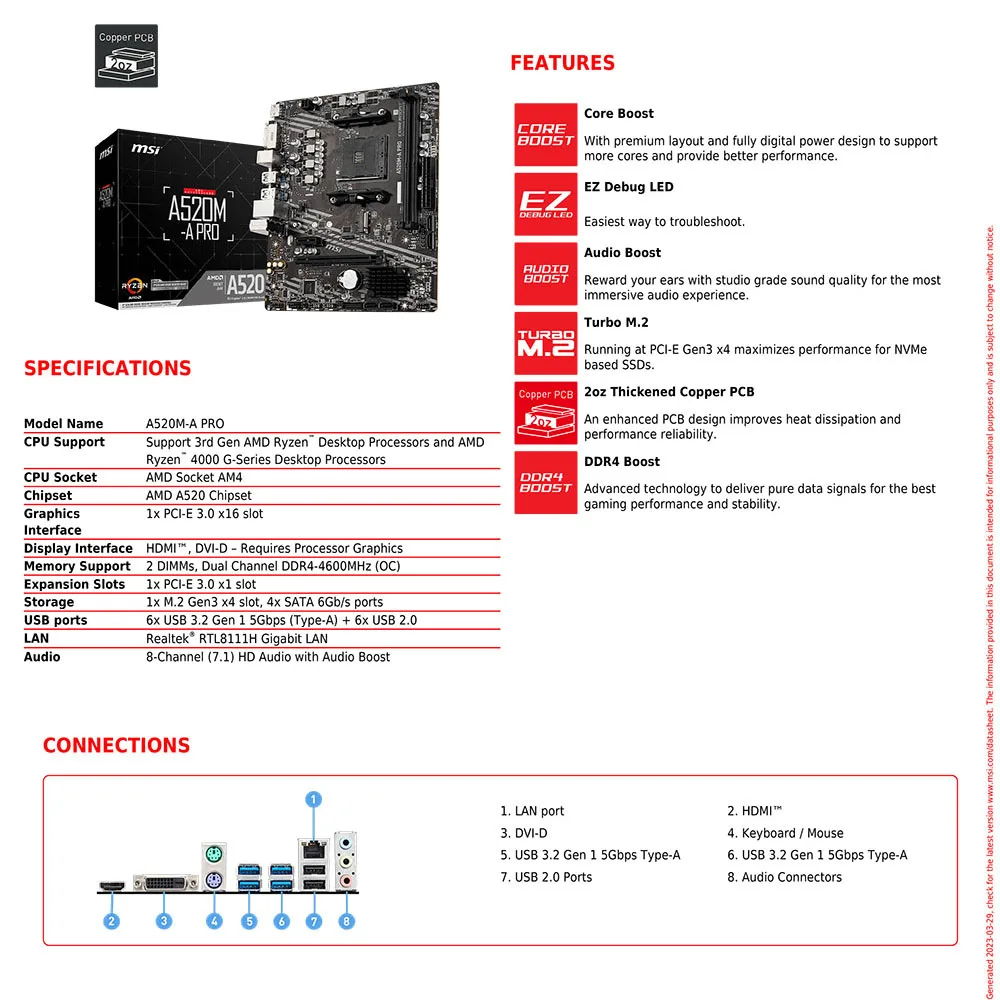

SPECIFICATIONS

Model Name : A520M-A PRO — 100% New

CPU Support : Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors

CPU socket : AMD Socket AM4

Chipset : AMD A520 Chipset

Graphics interface : 1x PCI-E 3.0 x16 slot

Display interface : HDMI, DVI-D – Requires Processor Graphics

Memory support : 2 DIMMs, Dual Channel DDR4-4600MHz (OC)

Storage : 1x M.2 Gen3 x4 slot, 4x SATA 6Gb/s ports

USB ports : 6x USB 3.2 Gen 1 5Gbps (Type-A) + 6x USB 2.0

LAN : Realtek RTL8111H Gigabit LAN

Audio : 8-Channel (7.1) HD Audio with Audio Boost



Note :

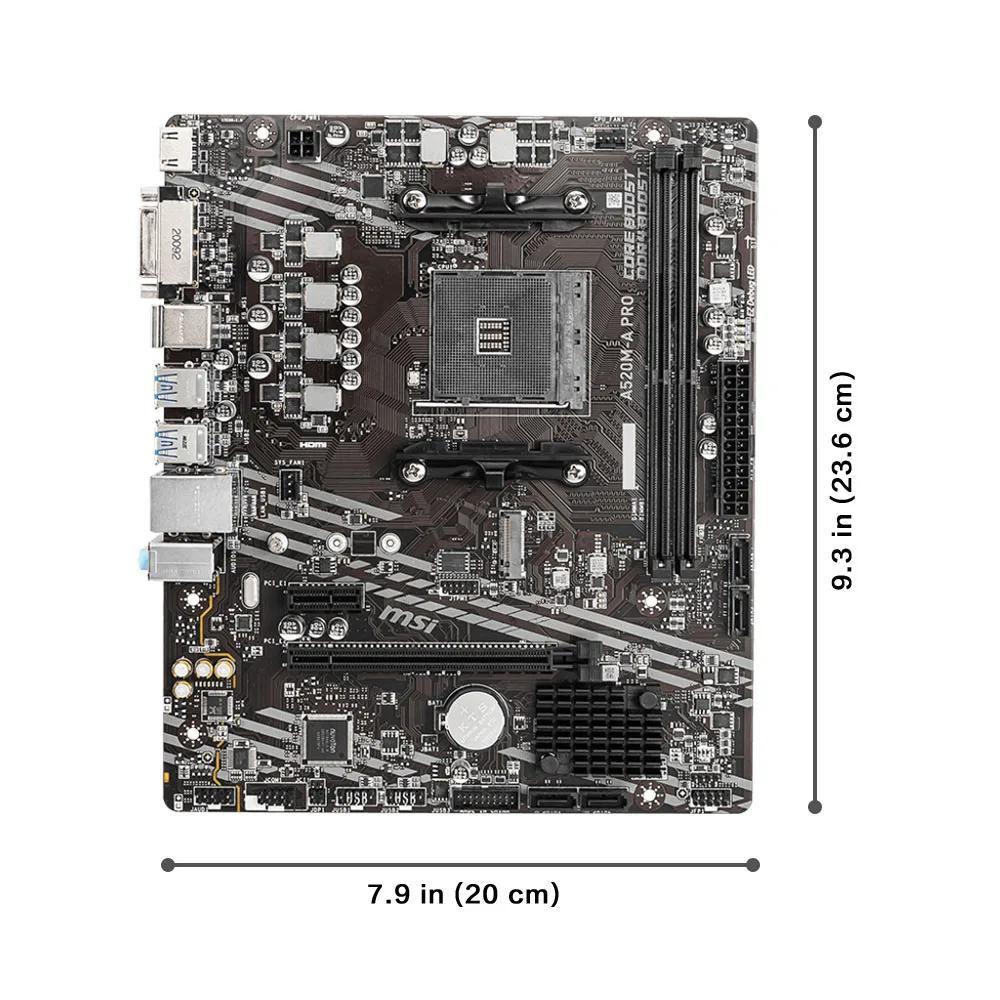

1 : Please allow 1-3mm differs due to manual measurement.

2 : Due to the different display and different light, the picture may not show the actual color of the item.Thanks for your understanding.

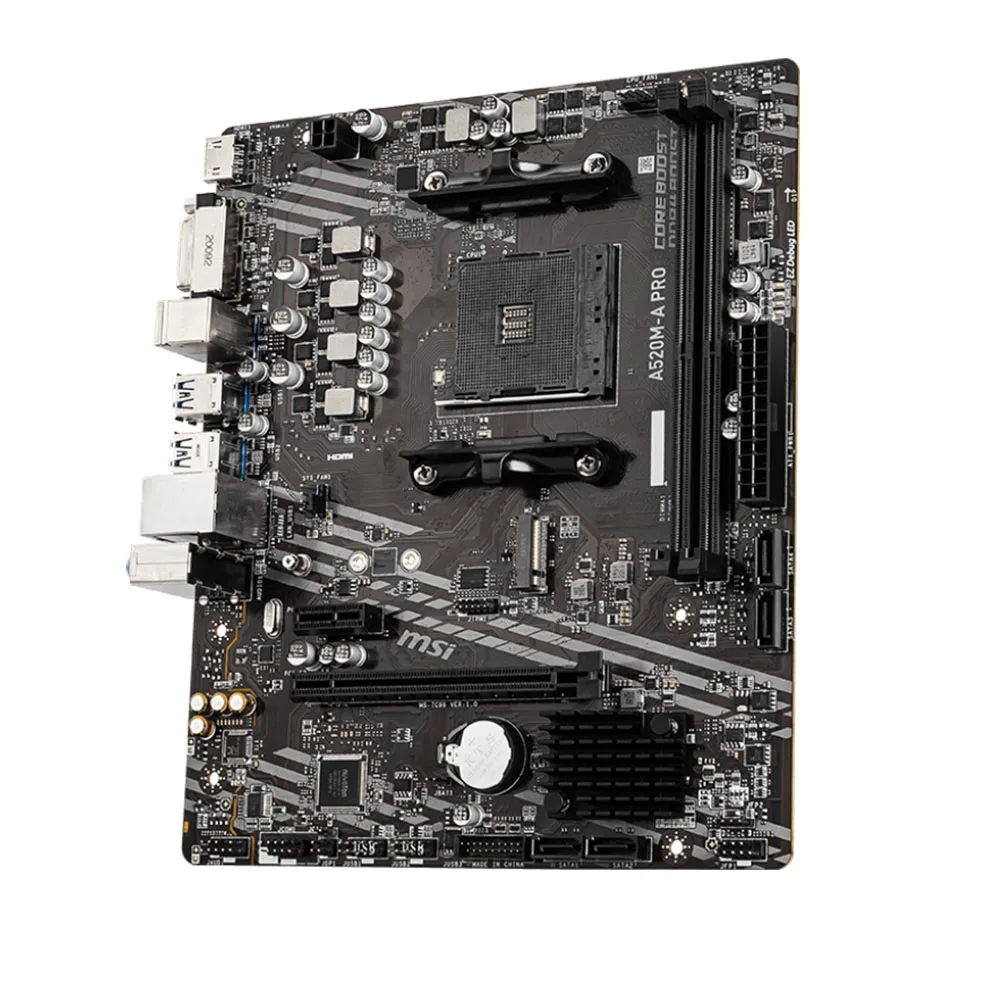

3 : We show photos of motherboard, pictures are for reference only, subject to our available products.
